Optimal Placement of a Kitchen Chimney for Maximum Efficiency

Whenever we cook a spicy Indian meal, stepping into the kitchen feels like you just stepped into a smokehouse?

Which means the kitchen chimney isn’t doing its job properly, chances are it’s not placed in the right spot!

While placing a kitchen chimney it shouldn't be just about aesthetics, it directly impacts its efficiency. A poorly placed chimney can leave your kitchen filled with smoke, grease, and unwanted odors, making cooking more of a hassle than a joy.

So, where exactly should you install your kitchen chimney for maximum efficiency? The answer isn’t as simple as "just above the stove." Factors like height, ventilation, and duct placement all play a crucial role.

But don’t worry!

We’ve got you covered with a step-by-step guide to ensure your chimney works flawlessly.

Follow This Simple Guide to Installing a Kitchen Chimney

Modern chimneys can elevate kitchen beauty, increase property value  and appearance through their stylish design features which create sophisticated contemporary looks.

Step 1: Essential Tools and Materials for Chimney Installation

Credits: Canva

Users should obtain all necessary installation tools along with required materials before starting chimneymounting. A proper installation flows smoothly because of these materials.

• Measuring tape
• Drill machine
• Wall anchors and screws
• Chimney duct pipe
• Wall brackets
• Electrical wire connectors
• Spirit level
• Safety gloves and goggles

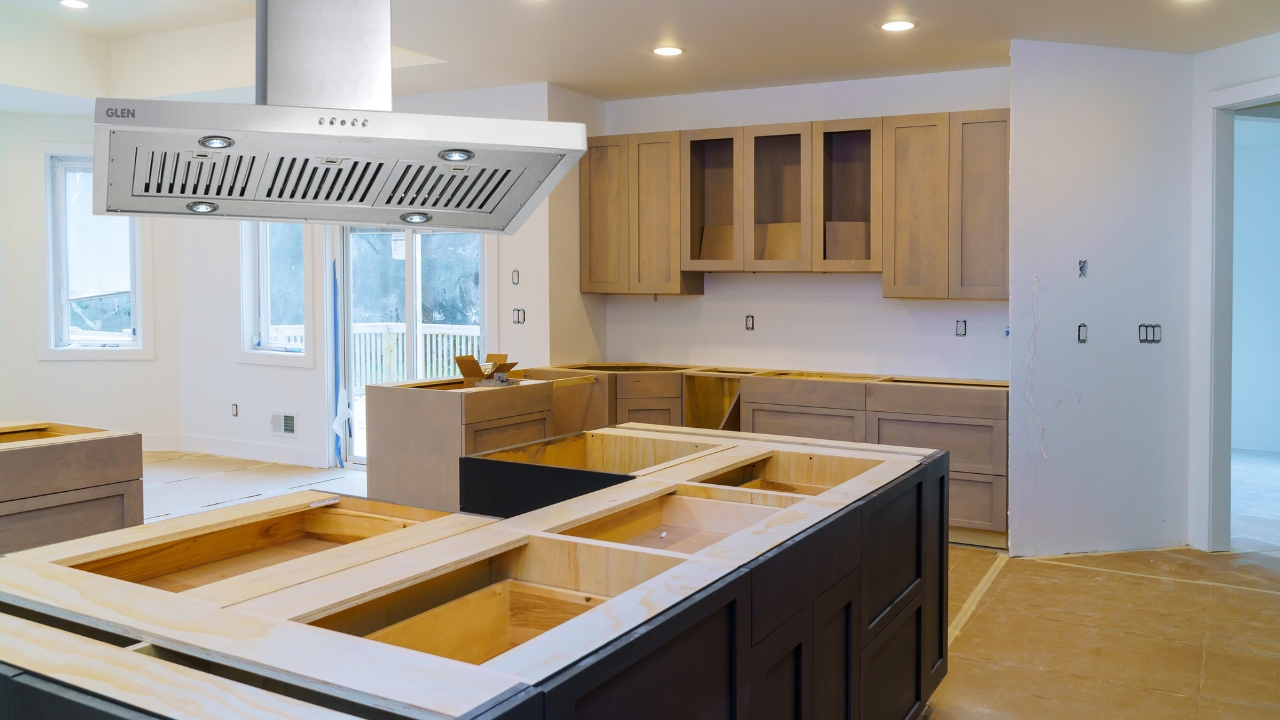

Step 2: Selecting the Best Location for Kitchen Chimney

Credits: Canva

Proper positioning of your chimney system will maximize its operational efficiency. The process of selecting an ideal location involves following these steps.

Directly Above the Cooktop

A proper chimney installation must have its position set at the exact location directly above the cooking range. The placement ensures that smoke and fumes rise in order to be effectively removed.

Ideal Height for Chimney Installation from the Cooktop

The space between the stove and the chimney should be between 26 and 32 inches. When the gas stove is turned on without a utensil on the burner and the distance between the two spots is less than 26 inches, the oil in the collectors has the potential to ignite, resulting in an explosion in the chimney.

Away from Windows and Fans

Do not place the chimney next to windows or fans because this kind of cross-ventilation weakens its operation by disturbing airflow.

Centered Over the Cooking Area

To maximize its suction efficiency position your chimney so it gets located precisely above the stove in the middle of the cooking area.

Step 3: Preparing the Wall for a Secure Installation

Credits: Canva

Preparing the installation area is a crucial step to ensure stability and longevity. Here’s what you need to do:

Mark the Mounting Points

Use a measuring tape and spirit level to mark where the chimney will be mounted.

Drill the Holes

The drill machine should cut holes at each marked anchor and screw position.

Fix the Mounting Brackets

Secure the brackets onto the wall with screws. Ensure they are firmly attached to prevent vibrations when the chimney is operational.

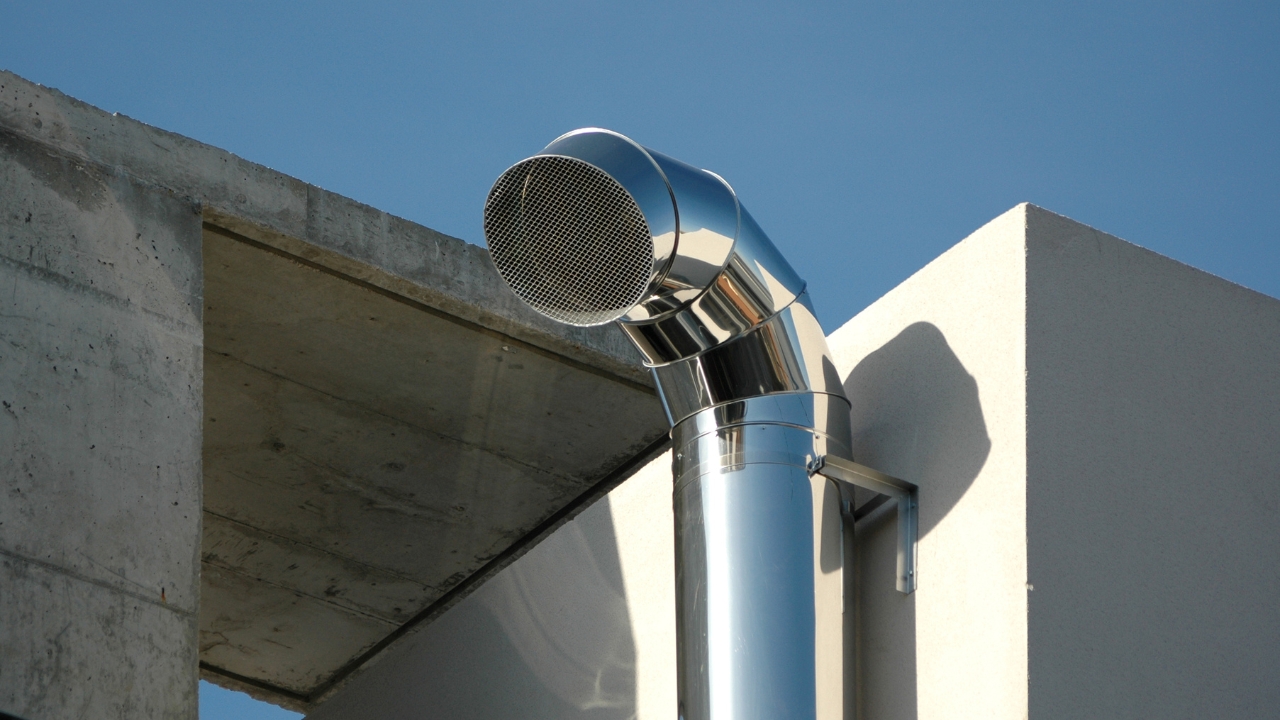

Step 4: Setting Up the Ducting and Ventilation System

Credits: Canva

A smooth expulsion of smoke and fumes depends on appropriate duct installation. Follow these key steps:

Choose the Right Duct Material

The ideal material for duct material should be aluminum or stainless steel because they demonstrate strong durability against high temperatures.

Optimal Duct Length

The duct should be as short and straight as possible to minimize air resistance. If bends are necessary, use smooth curves instead of sharp angles.

Exit Point

The duct must extend toward the outside of the room where it works as a vent for complete smoke extraction. Make sure it is not obstructed by walls or structures.

Step 5: Ensuring Safe and Proper Electrical Connections

A chimney requires a dedicated power source for smooth operation. Follow these safety tips:

• Use a Separate Power Socket: Install a dedicated power outlet near the chimney to prevent overloading other appliances.
• Earthing is Essential: Ensure the chimney is properly earthed to avoid electrical hazards.
• Use a Voltage Stabilizer: If your area has frequent voltage fluctuations, install a stabilizer to protect the chimney’s motor and electrical components.
• Waterproof Wiring: Use insulated and waterproof wiring to prevent damage from humidity and oil fumes.

Solving Common Issues with Kitchen Chimney Installation

Credits: Glen India

Even with careful installation, some common issues may arise. Here’s how to tackle them:

• Chimney Not Sucking Smoke Properly: Check if the duct pipe is clogged or too long, which may reduce suction efficiency.
• Excessive Noise During Operation: Loose mounting brackets or an unbalanced motor can cause vibrations. Tighten screws and check motor alignment.
• Chimney Not Turning On: Inspect the power connection and ensure the switchboard is functioning correctly.
• Oil and Grease Accumulation: Regularly clean the filters to maintain optimal performance.

Conclusion

Invest in a high-quality chimney  for a hassle-free cooking experience. From keeping your kitchen fresh and grease-free to adding a modern touch to your space, the right chimney placement makes all the difference. But beyond just positioning, choosing a high-quality chimney ensures long-term efficiency and convenience.

Glen India provides an excellent solution for those who need an efficient chimney with elegant features.
